For surveillance and monitoring, people often prefer to connect their CCTV cameras to a TV. It gives a large preview of the live feed and helps in monitoring everything with great attention to detail.

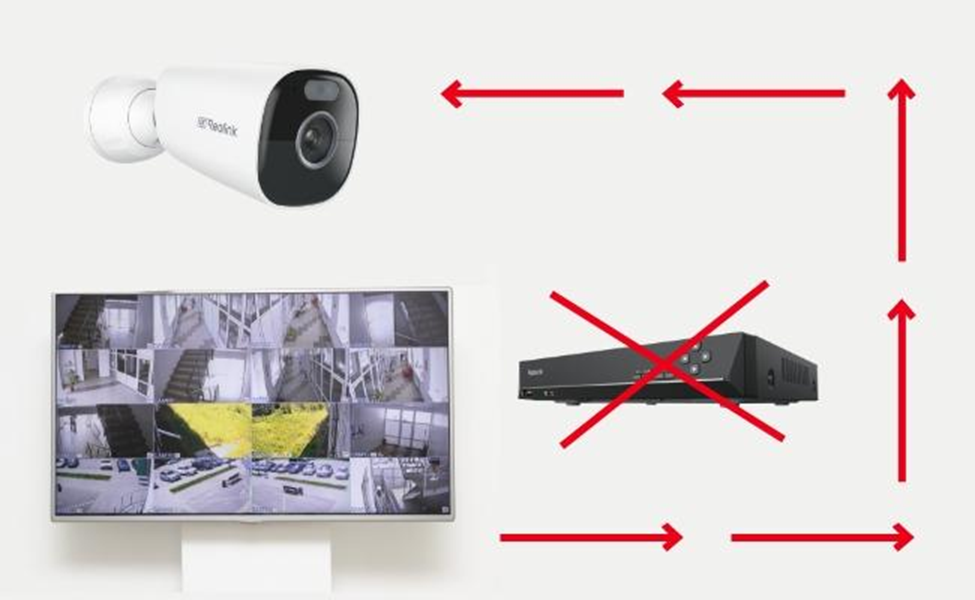

Connecting a CCTV camera to a TV via DVR is easy. But not everyone has a DVR. Let’s explore whether it is possible to connect a CCTV to a TV without a DVR or not and how you can do it step by step.
Can I Connect CCTV Camera to TV without DVR?
Yes, you can connect a CCTV camera to a TV without using a DVR. You can do it using a wired connection between the TV and the camera. However, it depends on the type of camera you have. Some cameras do not offer this feature, especially the older ones, while some cameras do.
Once the TV is connected to the camera, you’ll be able to see the live preview. The quality and smoothness depend on the connection, resolution of the camera, etc.
How to Connect CCTV Camera to TV without DVR with Wire?
You can connect a CCTV camera to TV without DVR through a wired connection. Here are the steps you need to follow.
Step 1: Before making any connections, turn off the CCTV camera and TV.
Step 2: Now, you need to connect the camera to the TV through a wire. There are different wire types you can use depending on the type of the camera.
Method 1: If there is a USB port in the camera, you can use a USB cable and connect to the TV. Connect one end of the cable to the output USB port of the camera and connect the other end to the input USB port of the TV.
Method 2: The second option is using the HDMI port if there is any and using a suitable cable. Insert one end in the camera’s output and the second end in the TV’s HDMI input.
Method 3: Some older cameras can be connected via an RCA cable. It’s a cable with three pins in different colors: red, white, and yellow. The yellow plug goes into the video output of the CCTV camera. The red is for the audio, and the white is for the microphone or speaker. Usually, the colors are marked on the ports for easy connection.
Step 3: Once the camera is connected to the TV, turn both devices on. Select the input source on your TV to see the camera feed.
How to Set CCTV Camera without DVR Wireless?
You can set up your CCTV camera without a DVR. Here are some ways to do it wirelessly.
Via UID
Setting up a camera using the UID is easy. However, the step-by-step process varies according to the brand. Let’s take the Reolink camera as an example.
Step 1: Turn on the security camera and download the Reolink camera application on your smartphone.
Step 2: Open the application. Tap the “+” button. It will ask you to scan the QR code. However, you can tap on the UID option and enter the UID.
Step 3: Enter the name of the camera and set up the password. Complete the initialization process. You will see the camera and live feed on the home page.
Via Port Forwarding
Step 1: You need to find the IP address of the camera. Check the box, or you can see it in the Device Settings > Network on your computer.
Step 2: Now, go to “Device Settings > Network > Advanced > Setup > Port Settings”. Check the HTTP and RMTP ports.
Step 3: Open your browser and log into the web interface of your router. Forward the HTTP port and RMTP port to the camera’s IP address.
Step 4: Finally, you need the WAN IP address of your home network. You can use any online tool to find that. Open your browser and use our WANIP and port in this URL “http://(wanip):(httpport).” It will show you the live feed of the camera.
Recommended for CCTV Camera without DVR
Reolink TrackMix PoE
TrackMix PoE is a dual-lens PTZ security camera that does not need a DVR. It can work independently and show the live preview on your smartphone, TV, or computer. It captures the videos in 4K resolution and covers a massive area through its pan and tilt movement. It offers a close-up and wide-angle view at the same time and offers clear videos at night.
Pros:
- PoE offers a lag-free live preview on the connected devices
- Shows dual-view for optimal surveillance
- Detects persons, pets, and vehicles and tracks their motion
- Records colored videos at night with optimal clarity
- Flexible storage options
Cons:
- Requires proper Ethernet wiring
Reolink RLC-843A
RLC-843A is a vandal-proof continuous recording security camera that can show lag-free live previews on TV, monitor, or smartphone. It’s specifically designed for outdoor security and to work in all weather conditions. It’s a plug-and-play PoE camera that records videos in 4K resolution. It even records clear videos at night through dual night vision.
Pros:
- Exceptional video quality with intricate details
- 5X optical zoom to capture the close-up view of objects
- Smartly detects objects and sends real-time alerts
- Flexible recording options
- Vandal-proof and weatherproof
Cons:
FAQs
How do I stream CCTV to my Smart TV?
You can stream CCTV cameras to your smart TV through Wi-Fi connectivity and using a smart TV app for the camera. Other than that, you can use a USB or HDMI connection between the devices.
How to connect CCTV to Wi-Fi without DVR?
You can connect the Wi-Fi CCTV camera to your home/office Wi-Fi through the camera’s smartphone application. Open the app, follow the set-up process, and connect the camera to Wi-Fi. It does not require a DVR.
Final Words
It is possible to connect a CCTV camera to a TV without using a DVR. It works and shows the live feed. However, it depends on the camera you have. We have shared the step-by-step method to connect the camera to TV to see the live feed on a big screen. You can easily set up the camera and enhance the security.
